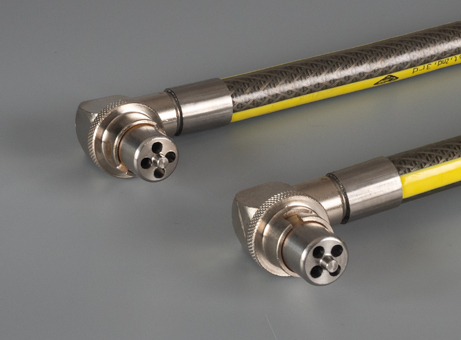

GFS Angled Bayonet Gas Cooker Hose 1.5m – Swivel Head EN 14800
Professional Quality 1500mm Flexible Stainless Steel Gas Cooker Hose for Natural Gas and LPG
The GFS 1.5m Angled Bayonet Swivel Head Cooker Hose is an EN 14800 corrugated stainless steel safety hose assembly designed for connections to suitable domestic gas cooking appliances.
Featuring GFS's patented angled bayonet swivel head, this hose is designed to make installation and appliance positioning more convenient whilst helping to minimise unnecessary twisting of the flexible hose.
Manufactured using corrosion-resistant AISI 316L stainless steel, the hose is protected by a transparent TPE jacket and uses stainless steel and copper alloy connection components.
Technical Details
| Attribute | Specification |
|---|---|
| Manufacturer | GFS Gas Flex Systems |
| GFS Product Code | GA-ANGBY-150 |
| Product Type | Flexible Gas Cooker Hose |
| Overall Length | 1500mm / 1.5m |
| End Connection | Angled Bayonet Swivel Head |
| Approved Gas Families | 1st, 2nd and 3rd Family Gases |
| Suitable Gases | Natural Gas, Propane and Butane |
| Manufacturing Standard | EN 14800:2007 |
| Corrugated Hose Standard | EN ISO 10380 |
| Hose Material | AISI 316L / 1.4404 Stainless Steel |
| Outer Jacket | Transparent TPE |
| Connection Materials | AISI 304 / 303 Stainless Steel and MS58 Copper Alloy |
| Connection Component Standard | EN 15069 |
| Maximum Application Pressure | Below 0.5 bar, within the EN 14800 application scope |
Key Benefits
-
Patented angled bayonet swivel connection.
-
Strong, flexible corrugated stainless steel construction.
-
Manufactured to EN 14800:2007.
-
Suitable for compatible natural gas and LPG cooker installations.
-
Protective transparent TPE outer jacket.
-
Excellent mechanical and corrosion resistance.
-
Designed for a long service life.
-
Lot-number identification for traceability.
-
1.5 metre length for installations requiring additional reach.
Applications
Suitable for use in domestic gas cooker installations requiring an EN 14800 flexible metal hose with a compatible angled bayonet connection.
The patented swivel head makes the hose particularly useful for installations where the connection angle and space behind the appliance need careful consideration.
Installation & Safety
This hose must be correctly matched to the gas cooker, connection socket and installation requirements.
Gas connections must be installed and checked by suitably qualified personnel, with Gas Safe registration where required.
Package Contains: 1 x GFS 1.5 Metre Angled Bayonet Swivel Head Gas Cooker Hose.
